Next Level Neo Pre-Wired 5mm RGB LEDs

50 LEDs Per Strand | 5V Addressable RGB | Bare Ends for Custom Wiring

Simplify your custom lighting projects with Next Level Neo’s Pre-Wired 5mm RGB LEDs. Designed for builders who want flexibility without the hassle, these addressable LEDs are perfect for Color Flow headliners, interior accents, and other creative automotive or DIY lighting installations.

Each strand comes pre-wired with precise spacing and clear wiring indicators, making layout and connection easier than ever.

Key Features:

• Pre-Wired Convenience:

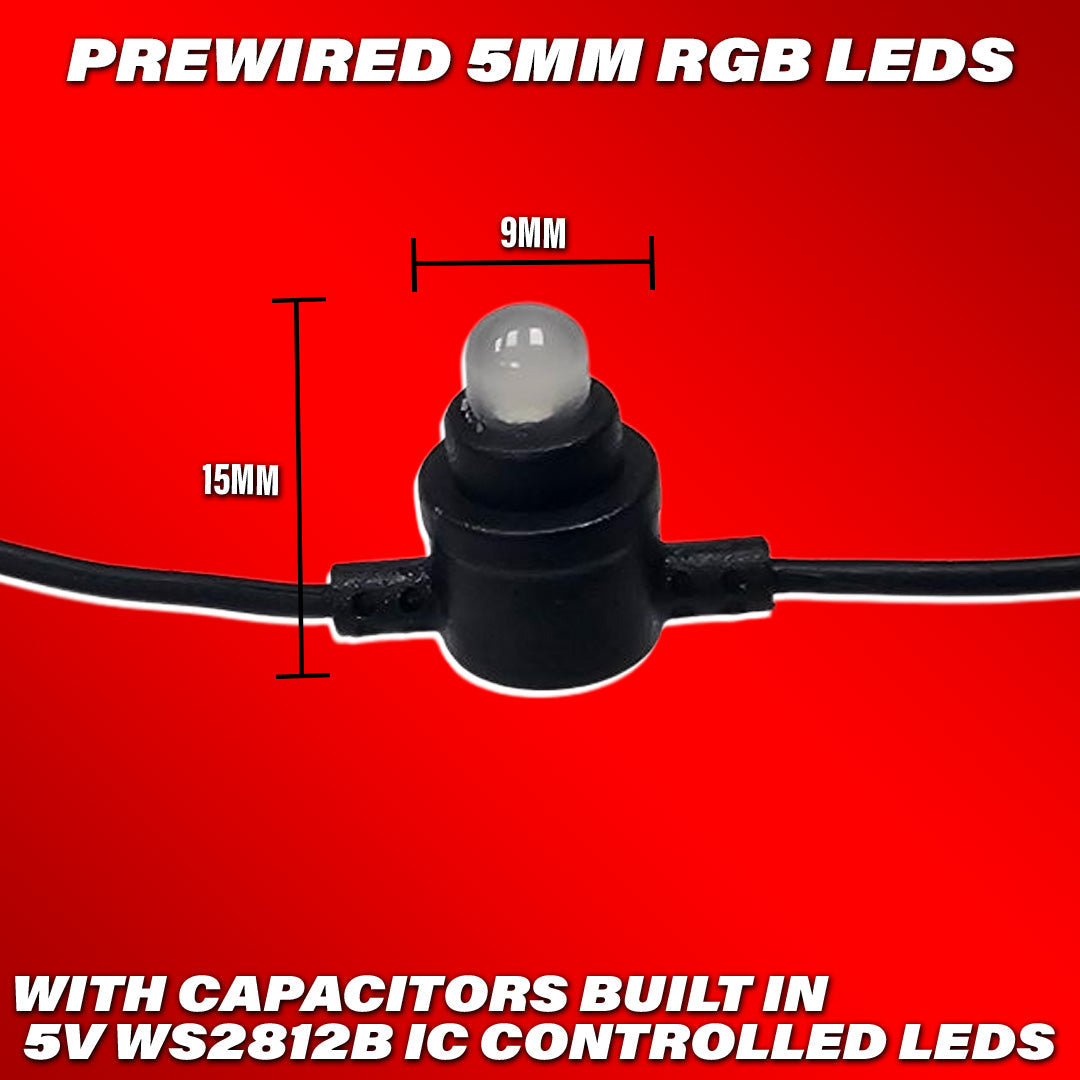

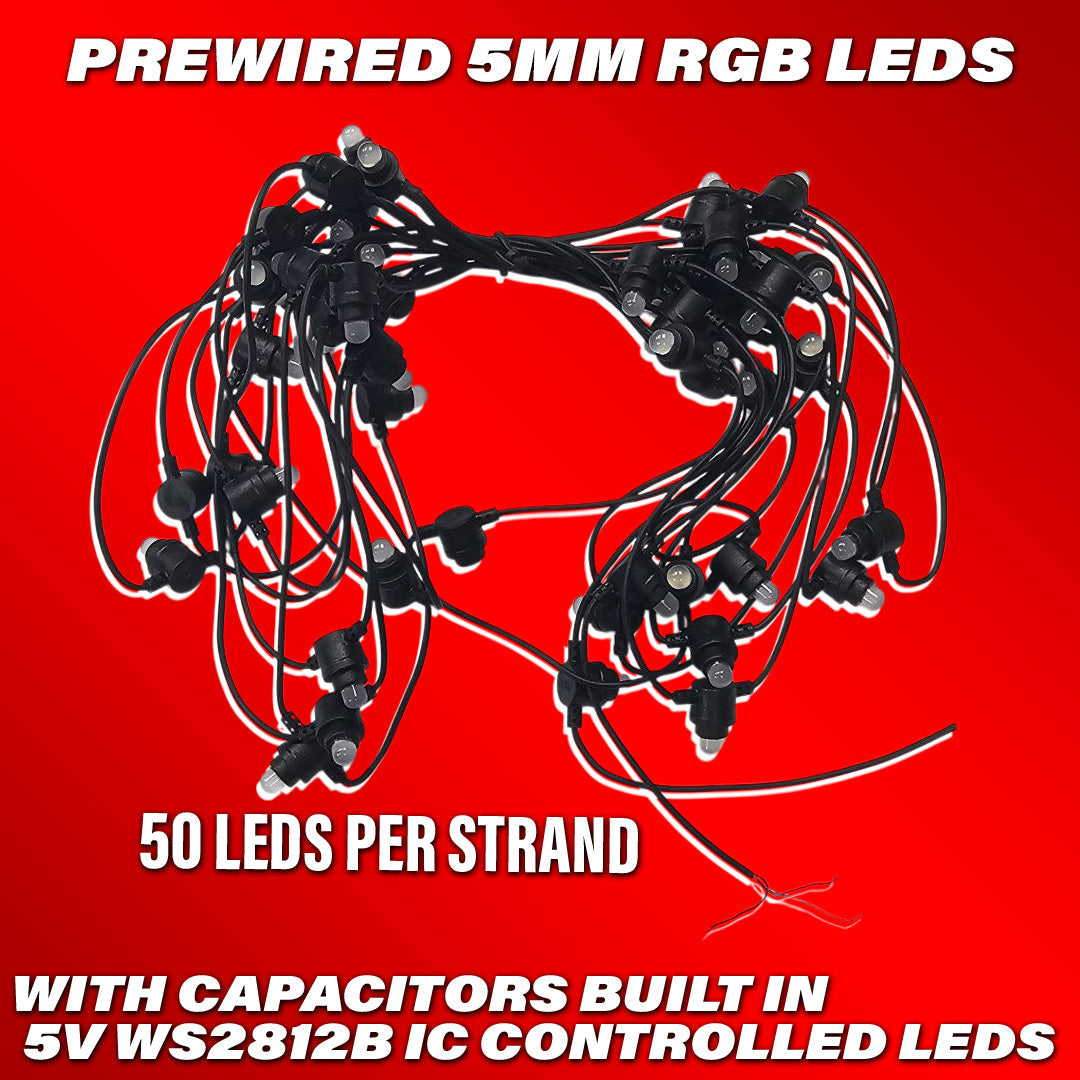

  • 50 individually addressable 5mm RGB LEDs per strand

  • 3 inches of wire between each LED for flexible routing

• Customizable Connections:

  • Bare wire ends allow you to add JST plugs or solder directly to your setup

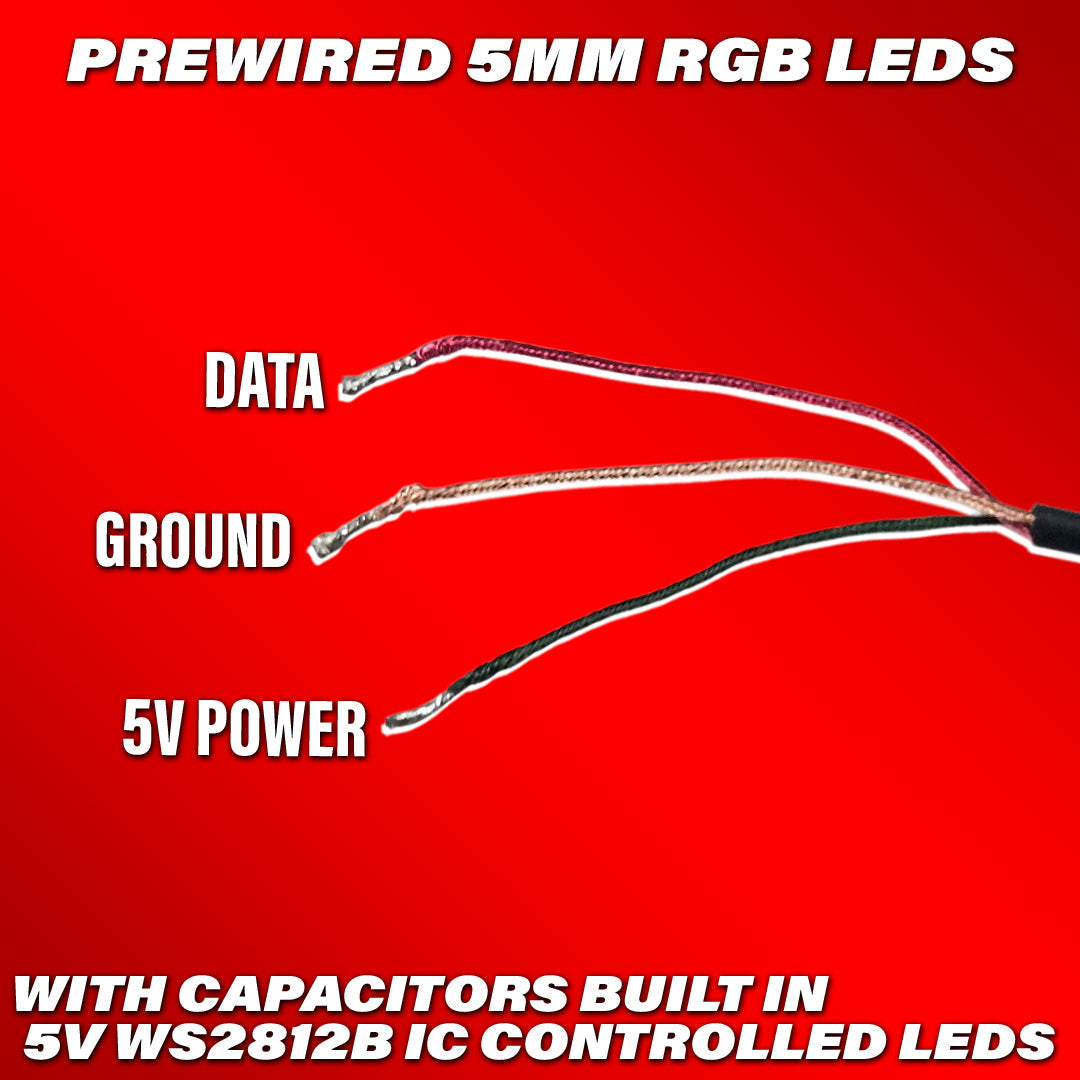

• Clear Input/Output Designation:

  • Input side: 3 visible wires

  • Output side: 2 visible wires (all 3 accessible if needed by stripping sheath)

• Versatile Applications:

  • Ideal for automotive headliners, ambient interior lighting, custom displays, and DIY electronics projects

Product Specifications:

• Voltage: 5V (Controller required for addressable operation)

• LED Type: 5mm RGB (Addressable WS2812B or equivalent format)

• Wire Spacing: 3" between each LED

• Connection Type: Bare ends (input and output)

Installation Notes:

• Requires basic soldering or installation of JST connectors (connectors not included)

• Confirm polarity and wiring direction before powering on

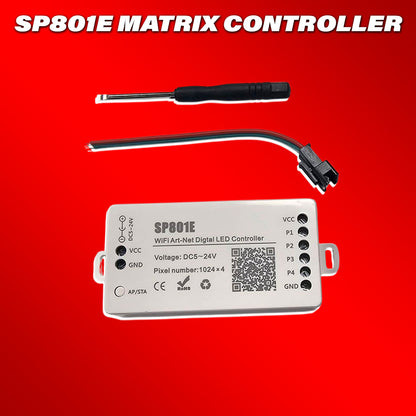

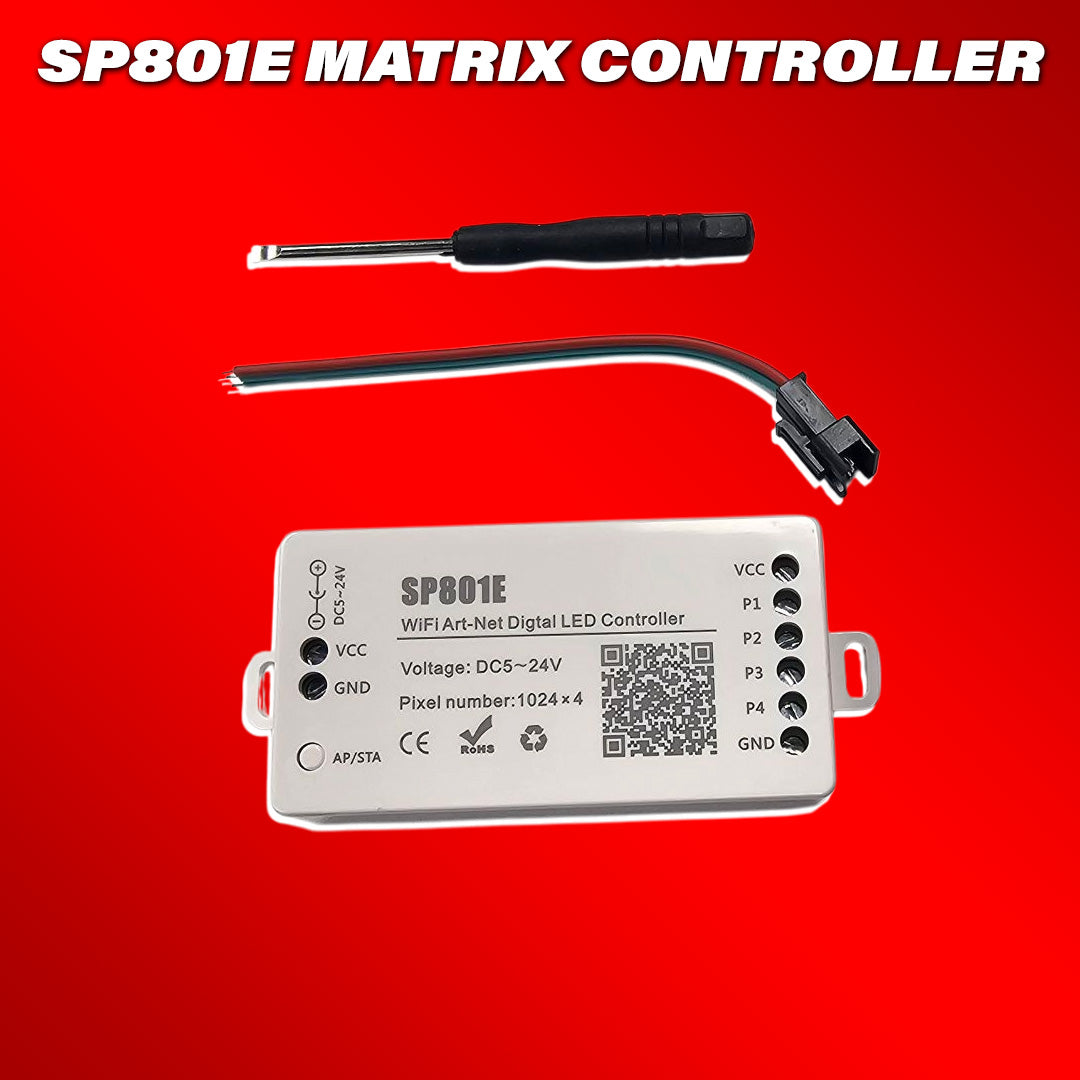

• Compatible with controllers like BlueGhozt, SP105E, and Pro Flow

Bring Your Vision to Life

From dynamic Color Flow headliners to custom accent lighting, Next Level Neo’s Pre-Wired 5mm RGB LEDs deliver professional results with DIY flexibility. Perfect for creative builders ready to take lighting design to the next level.
