Next Level Neo V2 High-Density Hex Halos

Available in 100mm & 138mm Sizes
Sold as a Pair (Driver + Passenger Side)

Make a bold statement with the V2 High-Density Hex Halos from Next Level Neo. Designed for builders who want maximum brightness, modern styling, and flawless integration, these addressable halos feature a dense LED layout and refined diffusion for that ultra-clean glow—up close or from across the lot.

Whether you’re dialing in a show build or upgrading your daily, these halos deliver the sharp, vibrant output your project deserves.

Key Features:

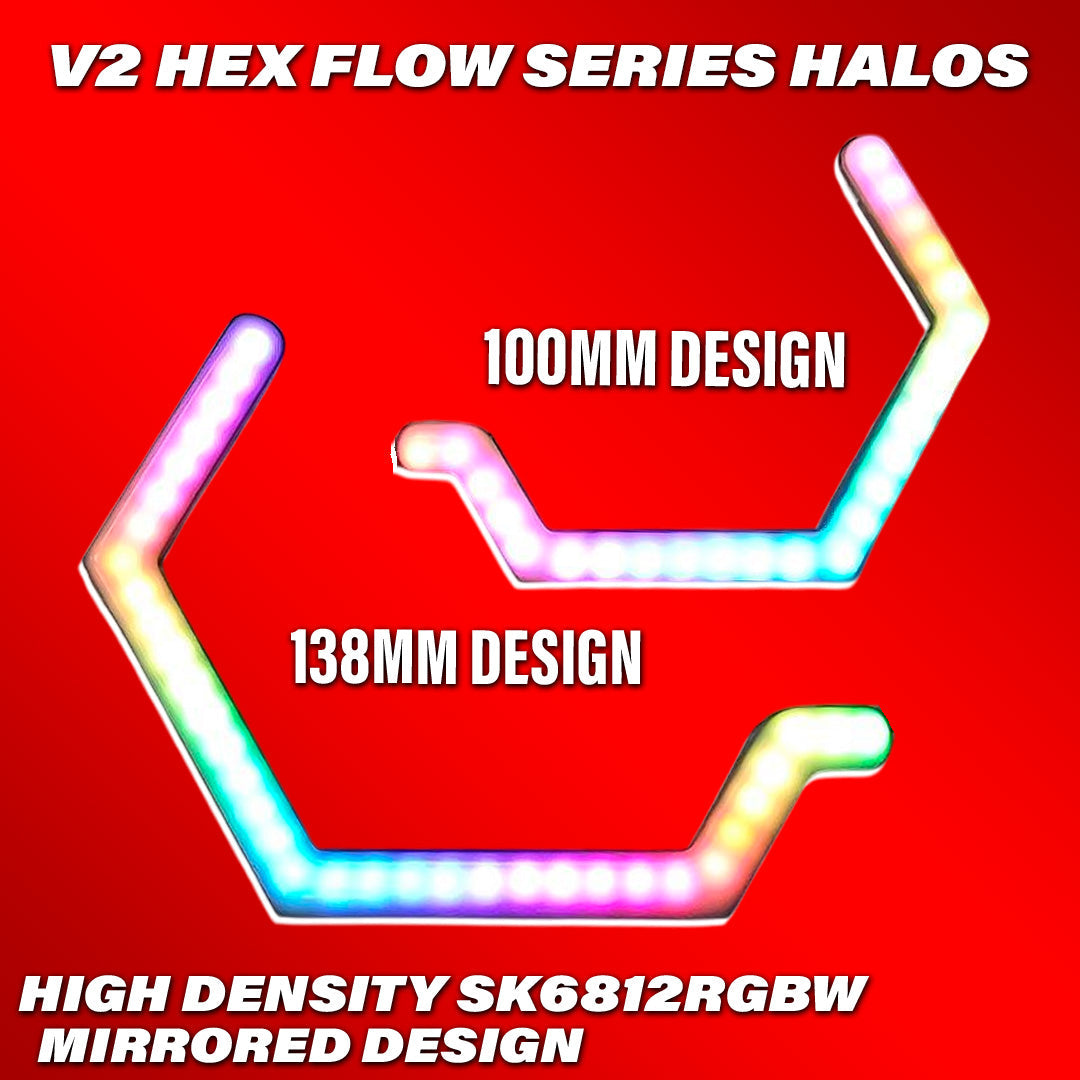

• High-Density LED Layout: Tightly spaced LEDs provide a smoother appearance with minimal pixelation.

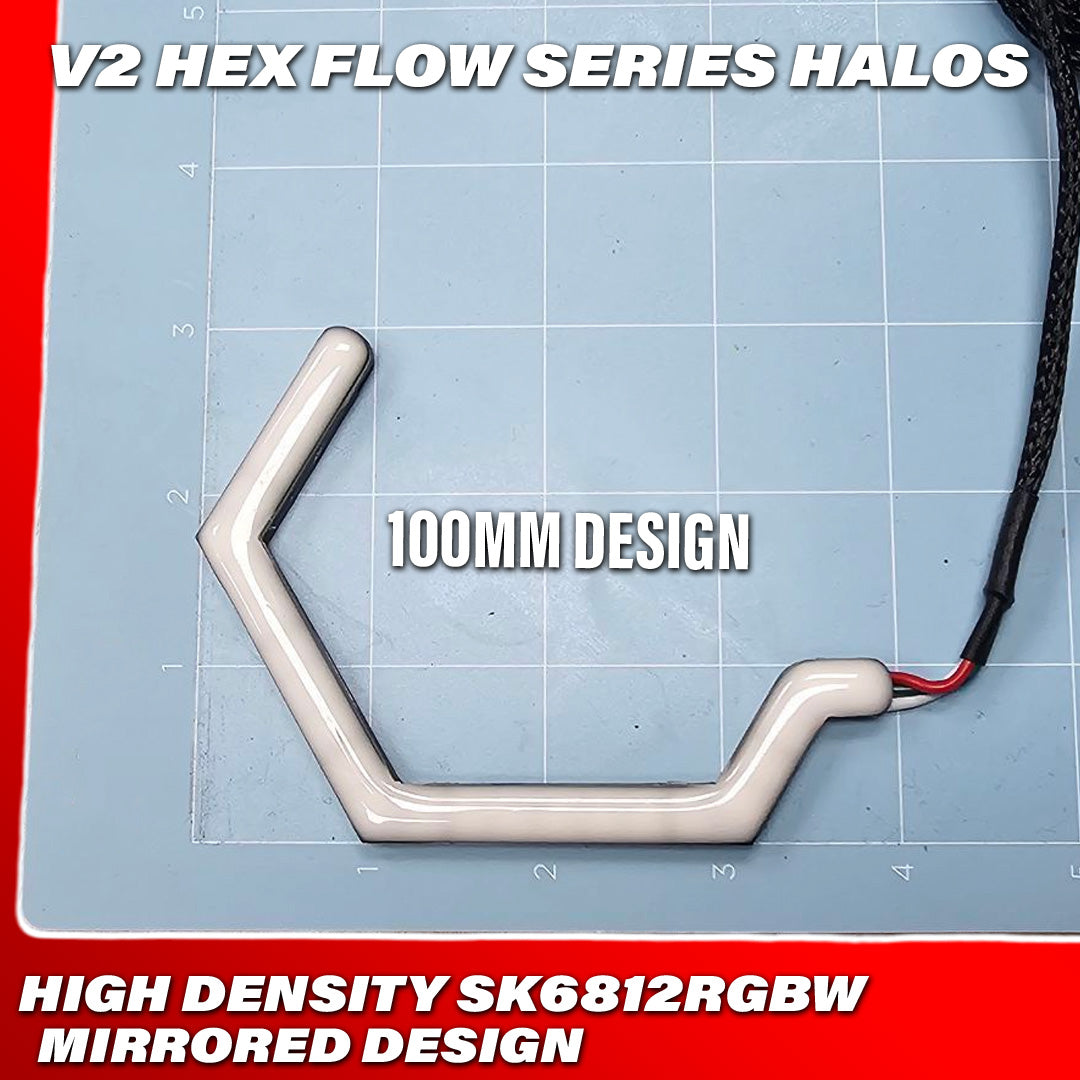

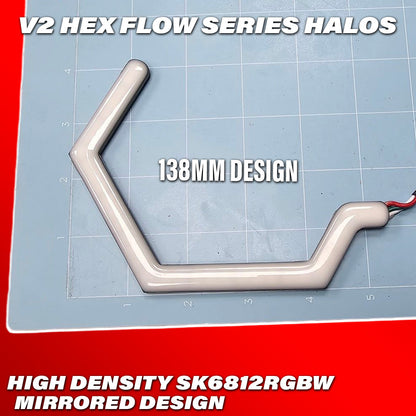

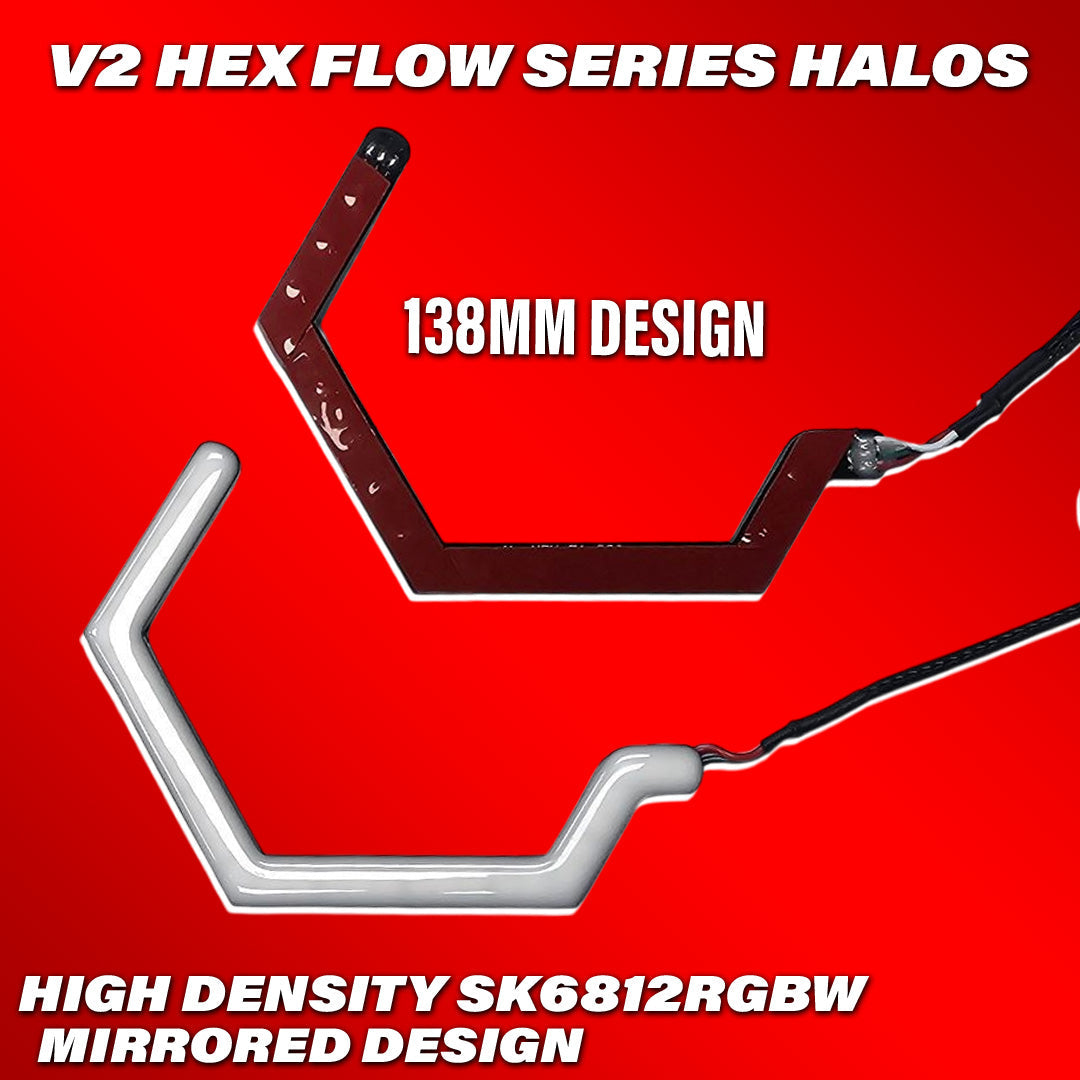

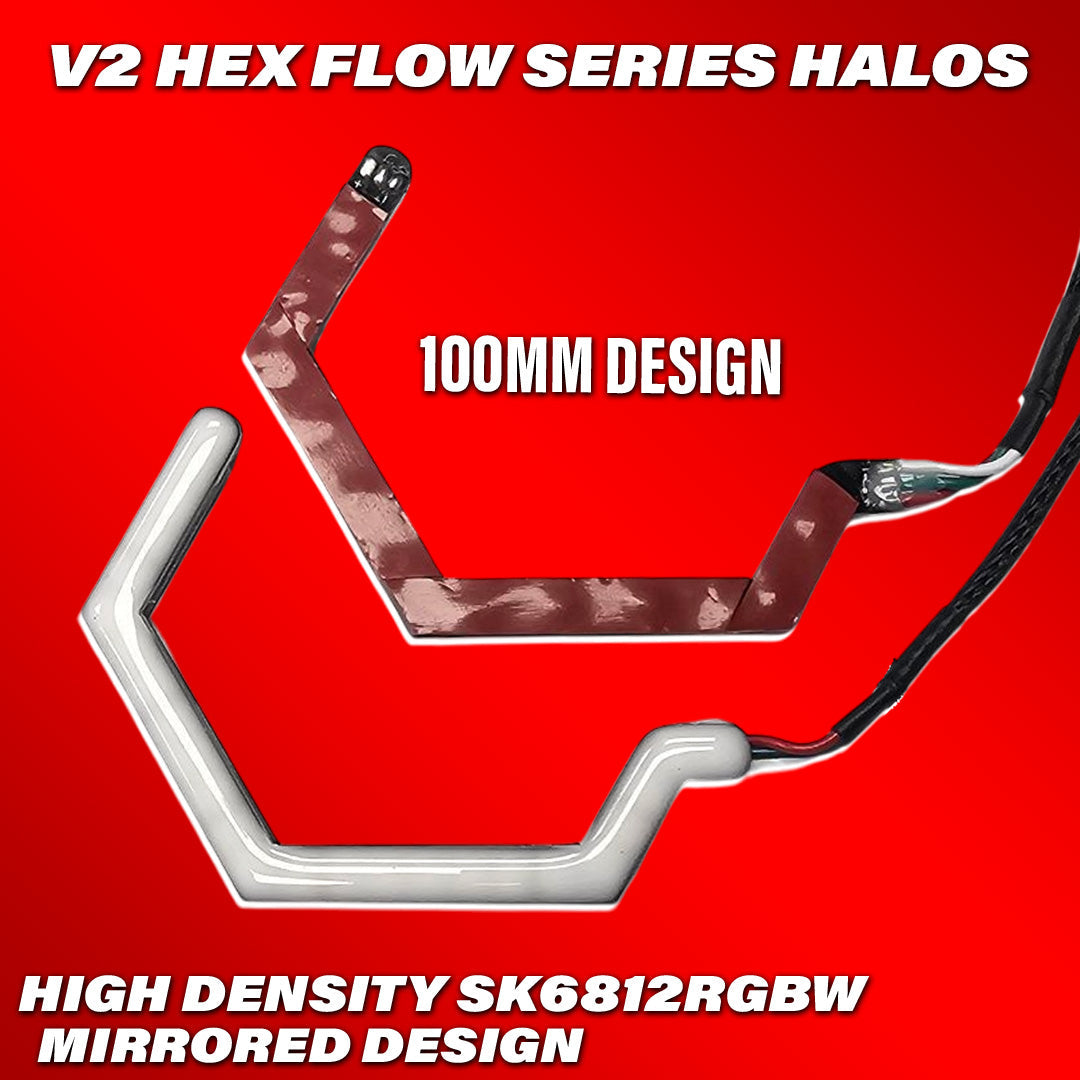

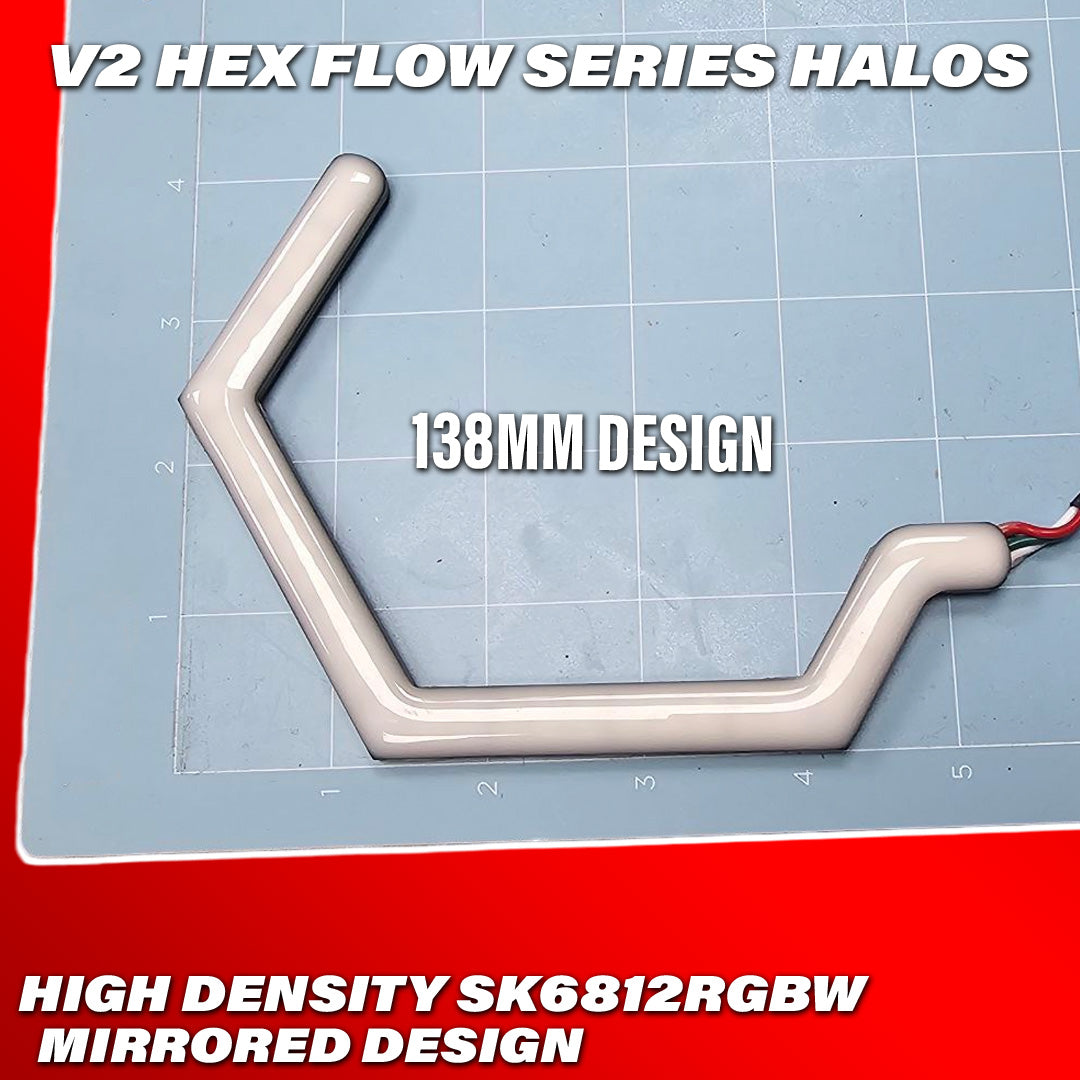

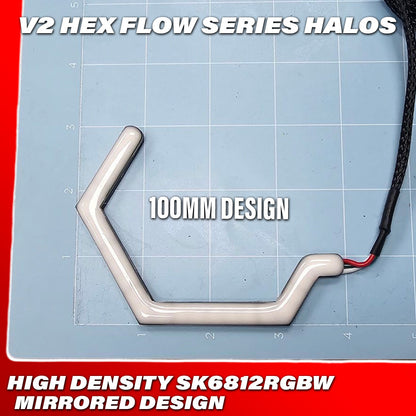

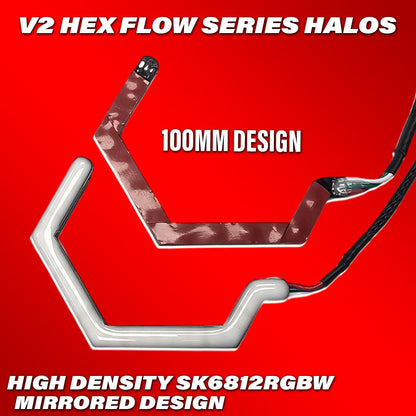

• Two Size Options: Choose from 100mm or 138mm outer diameters to fit a wide range of headlight housings.

• GRBW Addressable Control: Features a GRBW color order with Cool White (~6000K), compatible with SK6812/UCS2904-based systems.

• Pre-Soldered Inputs: Halos are ready to install out of the box with output pads for chaining additional halos.

• Controller Compatible: Works seamlessly with Pro Flow, BlueGhozt, SP105, and other GRBW-compatible 5V controllers.

• Sold as a Pair: Includes two halos—one for the driver side and one for the passenger side.

Fitment & Power:

• Voltage: 5V only

• Outer Diameter Options: 100mm and 138mm

• Polarity Sensitive: Incorrect wiring will damage the halos and void the warranty.

Installation Notes:

• Ensure correct wiring (5V, Data, Ground, optional White channel) before powering on.

• Use power injection for longer chains or complex setups.

• Avoid tampering with the diffusion layer or trimming the board.

Warranty:

Backed by Next Level Neo’s 2-Year Warranty on unmodified units.
Warranty does not cover misuse, incorrect wiring, or physical alterations.

Add aggressive styling and a clean, modern glow to your next build with the V2 High-Density Hex Halos—built to stand out day or night.
